Piping friction loss calculation can be time-consuming, especially with large systems having different sizes and segements of piping. Hours and hours of manual data-entry and table look-up are prompt to errors.

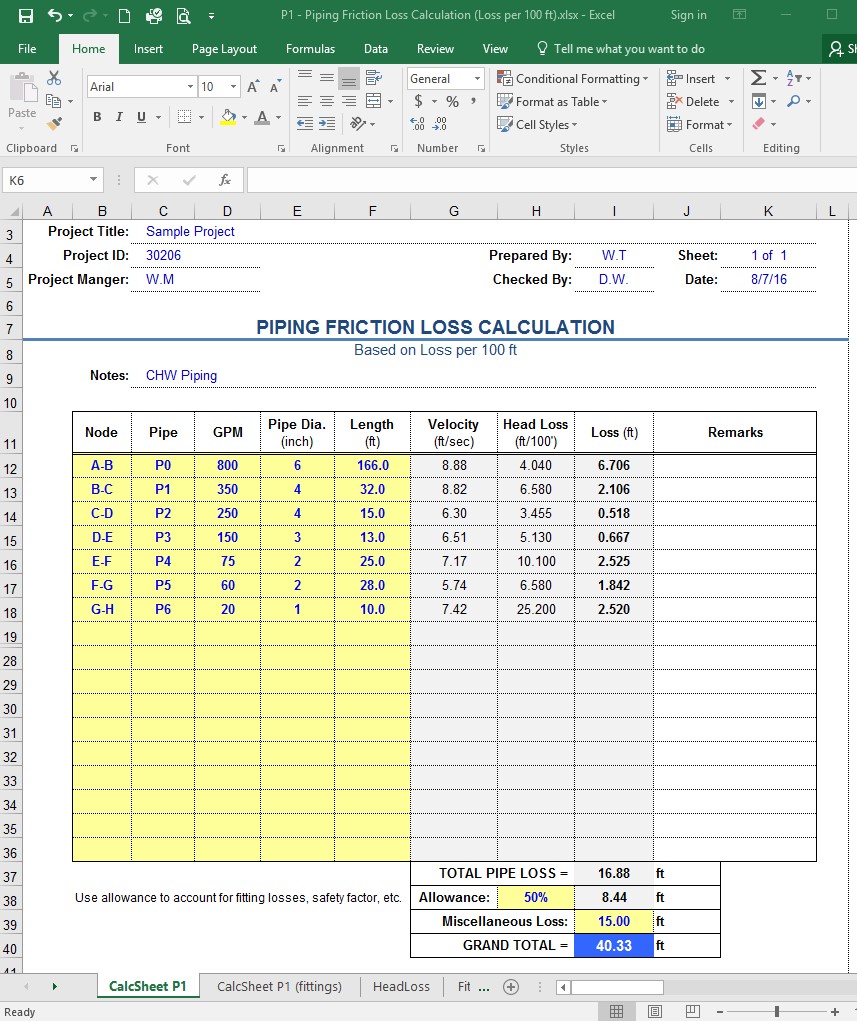

 P1 - Piping Friction Loss Rough Estimate.xlsx
(Click image to enlarge)
CalcSheet P1
Piping friction loss calculation can be easily performed by using our CalcSheet P1 - Piping Friction Loss Calculation.xlsx.  By entering pipe diameter, GPM, and pipe length, it automatically output its velocity, head loss per 100 feet and calculate its total friction loss for you.  There is even a place to add allowance to account for fittings, safety factors, and future expansions.
Topic: Piping Friction Loss Rough Estimate
HVAC / ENGINEERING
ENERGY CONSERVATION
FINANCE
BUSINESS
Click to Download P1 Piping Friction Loss Rough Estimate.PDF
